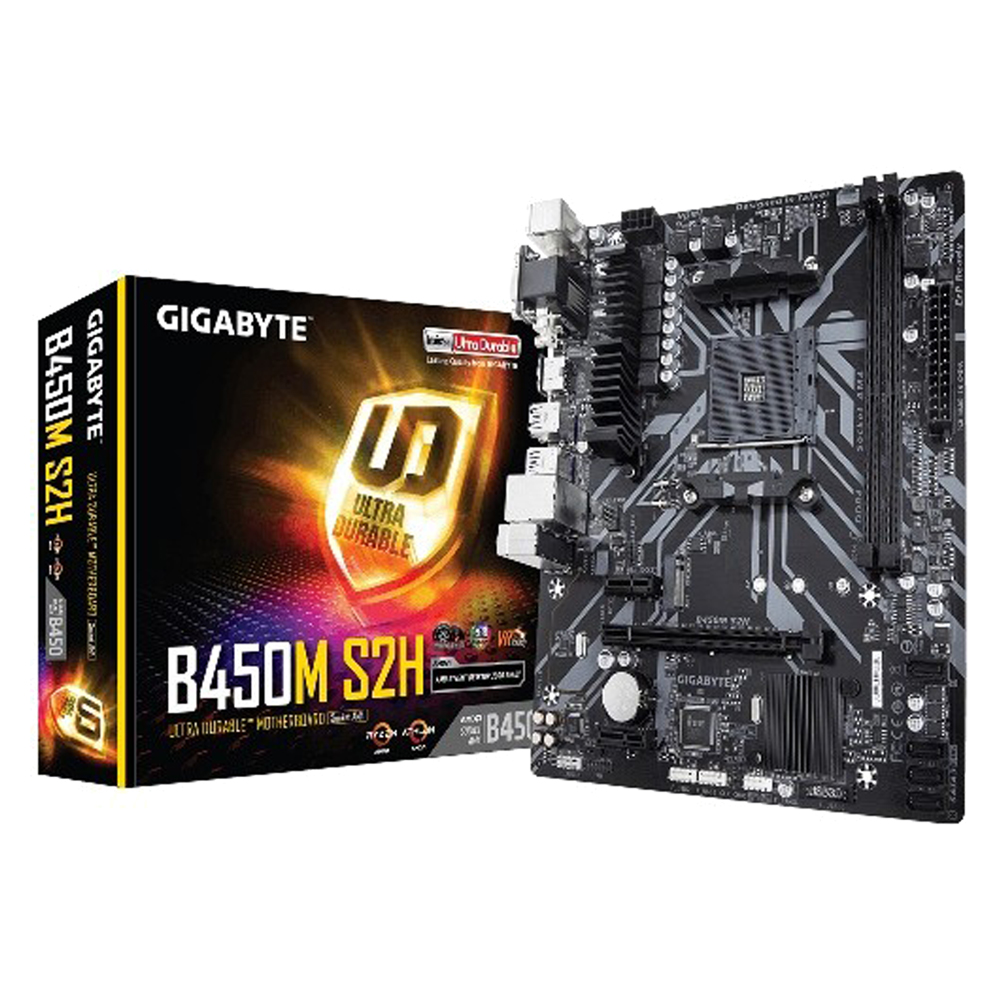

Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard
| Supported CPU | AM4 Socket Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors |
| Chipset | AMD B450 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| M.2 Socket | 1 x M.2 Socket 3 connector 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. |
| Memory Type | Dual channel memory architecture |
| Slots | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| Supported Memory | Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules – Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 32 GB |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200 at 60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200 at 60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160 at 60 Hz(Note) Maximum shared memory of 2 GB |
| Max Shared Memory | 2 GB |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160 at 60 Hz Support for HDMI 2.0 version and HDCP 2.2. 1 x HDMI port |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920×1200 at 60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920×1200 at 60 Hz |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) |
| Special Features | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| Manufacturing Warranty | 3 years warranty |
What is the Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard Price in Bangladesh ?
The Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard Price in BD is 0 ৳ in Today’s 8th May 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard Review in BD
| Product Price |
0 |
| Stock Status | In Stock |
| Specification | Model: Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard
Supported CPU: AMD Ryzenâ„¢ 2,Vega Graphics,1st Generation processors Supported Memory: 2 x DIMM, Max. 32GB, DDR4 Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200 at 60 Hz |
| Total Reviews | Based On 0 Reviews. |
| Availability | In Stock |
|---|---|
| Processor Type | |
| Brand | |
| CPU Socket | AM4 |
| From Factor | Micro ATX |
| RAM Type | DDR4 |
| Special Feature | EasyTune |
