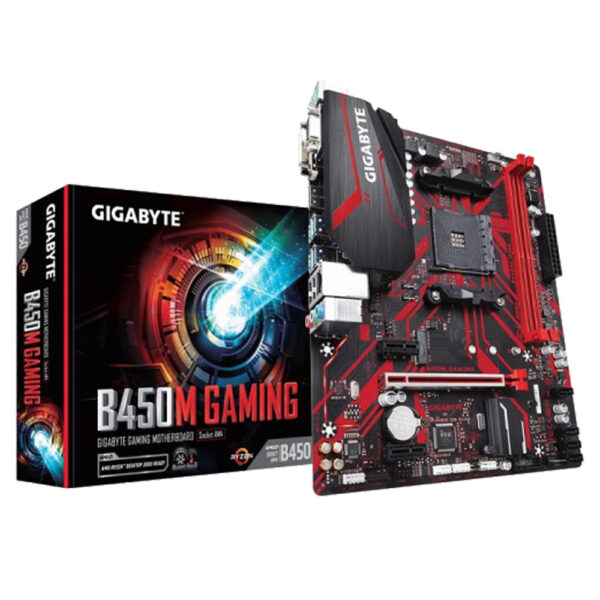

Gigabyte AMD B450M Gaming Motherboard
| Supported CPU | AMD Ryzenâ„¢ 2nd Generation processors AMD Ryzenâ„¢ with Radeonâ„¢ Vega Graphics processors AMD Ryzenâ„¢ 1st Generation processors |
| Chipset | AMD B450 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Audio | 3 x audio jacks |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| M.2 Socket | 1 x M.2 Socket 3 connector |
| Memory Type | DDR4 |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 32 GB |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. |
| Max Shared Memory | 2 GB |
| HDMI | 1 x HDMI port, |
| D-Sub (s) | 1 x D-Sub port |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz |
| LAN Port (s) | 1 x RJ-45 port |
| USB (s) | 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlonâ„¢ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) |
| Manufacturing Warranty | 3 years warranty |
What is the Gigabyte AMD B450M Gaming Motherboard Price in Bangladesh ?
The Gigabyte AMD B450M Gaming Motherboard Price in BD is 0 ৳ in Today’s 9th May 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
Gigabyte AMD B450M Gaming Motherboard Review in BD
| Product Price |
0 |
| Stock Status | In Stock |
| Specification | Model: Gigabyte AMD B450M Gaming Motherboard
Supported CPU: AMD Ryzenâ„¢ 2,Vega Graphics,1st Generation processors Supported Memory: 2 x DIMM, Max. 32GB, DDR4 Graphics support: Integrated Graphics Processor: |
