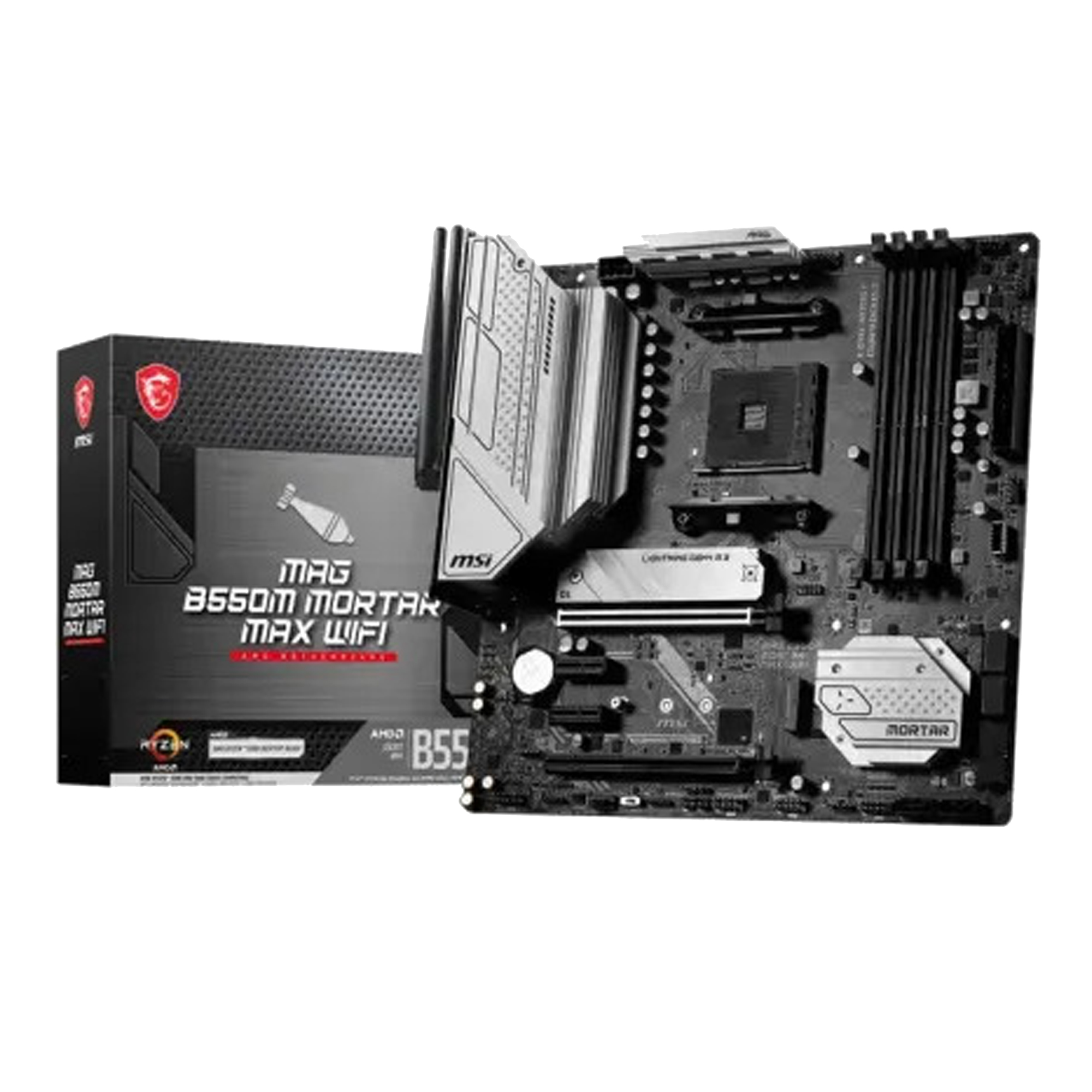

MSI MAG B550M MORTAR MAX WIFI AMD AM4 Micro-ATX Motherboard
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors Support Socket AM4 |
| Chipset | AMD B550 Chipset |
| Form Factor | Micro-ATX Form Factor |
| Audio | Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| PCI | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots |
| Memory Type | DDR4 |
| Slots | 4x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Maximum Memory | Max. 128GB |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz Supports 2-Way AMD CrossFire Technology |
| HDMI | 1x HDMI 2.1 port |
| USB (s) | AMD B550 Chipset: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor: 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| Supported Storage | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Manufacturing Warranty | 3 years warranty |
What is the MSI MAG B550M MORTAR MAX WIFI AMD AM4 Micro-ATX Motherboard Price in Bangladesh ?
The MSI MAG B550M MORTAR MAX WIFI AMD AM4 Micro-ATX Motherboard Price in BD is 0 ৳ in Today’s 28th April 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard Review in BD
| Product Price |
0 |
| Stock Status | In Stock |
| Specification | Model: MSI MAG B550M MORTAR MAX WIFI AMD AM4 Micro-ATX Motherboard
Supported CPU: AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors Supported Memory: 4 x DIMM, Max. 128GB, DDR4 Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz |
