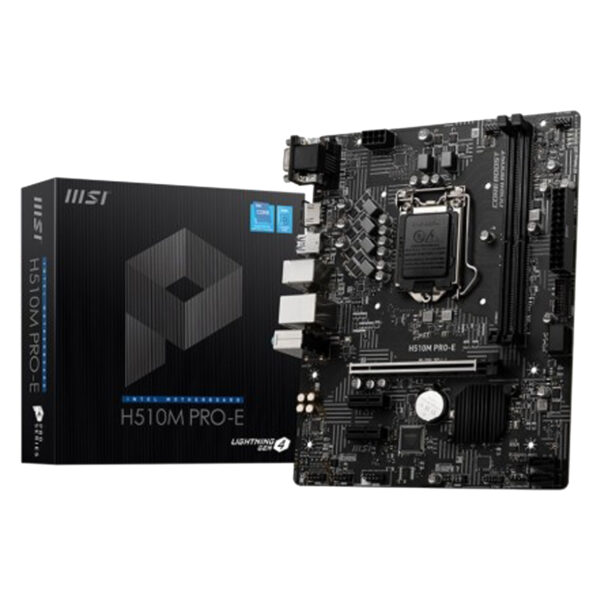

MSI H510M PRO-E Intel 10th Gen & 11th Gen Micro-ATX Motherboard

0.00৳

  • Intel H510 Chipset
  • Supported CPU – Intel Socket 10th Gen Intel Core Processors, 11th Gen Intel Core Processors
  • Memory Slot – 2
  • Memory Max. – 64GB

Hotline: 01977055921 (10:00AM TO 8:00PM)

MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro-ATX Motherboard

Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
Chipset Intel H510 Chipset
Form Factor mATX Form Factor
9.3 x 7.5 in. (23.6 cm x 19.0 cm)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
PCI 1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From PCH)
Memory Type DDR4
Slots 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Graphics 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
HDMI 1x HDMI 1.4 port
VGA (s) 1x VGA port
USB (s) Intel H510 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Realtek RTL8111 Gigabit LAN controller
Supported Storage 4x SATA 6Gb/s ports (From H510 Chipset)
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x USB 2.0 connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
TPM (Trusted Platform Module ) 1x TPM module connector
Manufacturing Warranty 3 years warranty

What is the MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro-ATX Motherboard Price in Bangladesh ?

The MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro-ATX Motherboard Price in BD is 0 in Today’s 29th November 2023 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard Review in BD

Product Price

0

Stock Status In Stock
Specification Model: MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro-ATX Motherboard

Supported CPU: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors

Supported Memory: 2 x DIMM, Max. 64GB, DDR4

Graphics: 11x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
