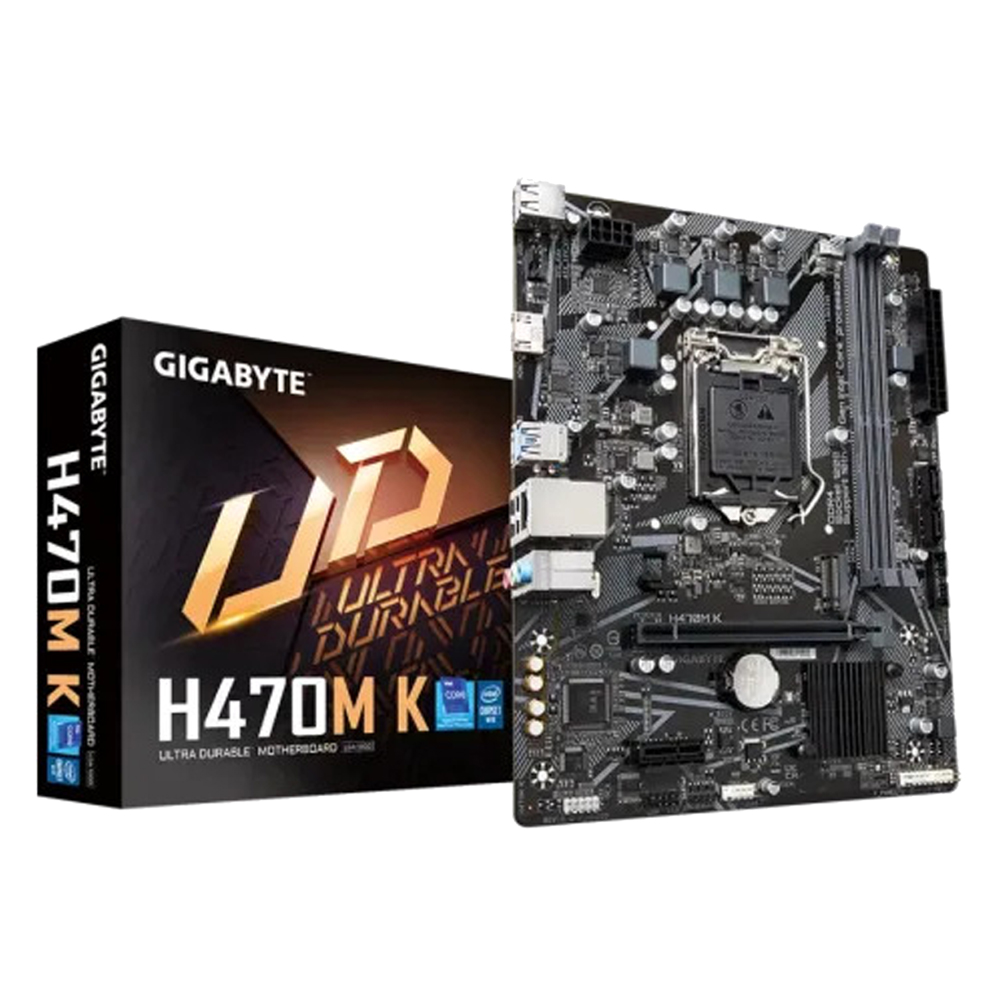

GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard

0.00৳

  • Intel H470 Express Chipset
  • Supported CPU – Intel Core i9/i7/ i5/i3/Pentium/Celeron processore.
  • Memory Slot – 2
  • Graphics Output: 1 x HDMI port, resolution of 4096×2160@30 Hz
  • Memory Max. – 64 GB

Hotline: 01977055921 (10:00AM TO 8:00PM)

Out of stock

GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard

Supported CPU LGA1200 package:
11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU
Chipset Intel H470 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
PCI 1 x PCI Express x16 slot:
Supporting PCIe 3.0 and running at x16
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket 1 x M.2 connector:
Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD
Memory Type DDR4
Slots 2x DDR4 memory slots
Supported Memory 11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
Maximum Memory Max. 64GB
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
HDMI 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
USB (s) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector:
Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD
2 x SATA 6Gb/s connectors
Intel Optane Memory Ready
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
Special Features 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
Manufacturing Warranty 3 years warranty

What is the GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard Price in Bangladesh ?

The GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard Price in BD is 0 in Today’s 17th July 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.

GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard Review in BD

Product Price

0

Stock Status In Stock
Specification Model: GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard

Supported CPU: Intel Core i9/ i7/ i5/i3/Pentium/Celeron processor.

Supported Memory: 2 x DIMM, Max. 64GB, DDR4

Graphics: Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

Total Reviews Based On 0 Reviews.

Availability

In Stock

Processor Type

Brand

From Factor

Micro ATX

RAM Type

DDR4

Special Feature

M.2
