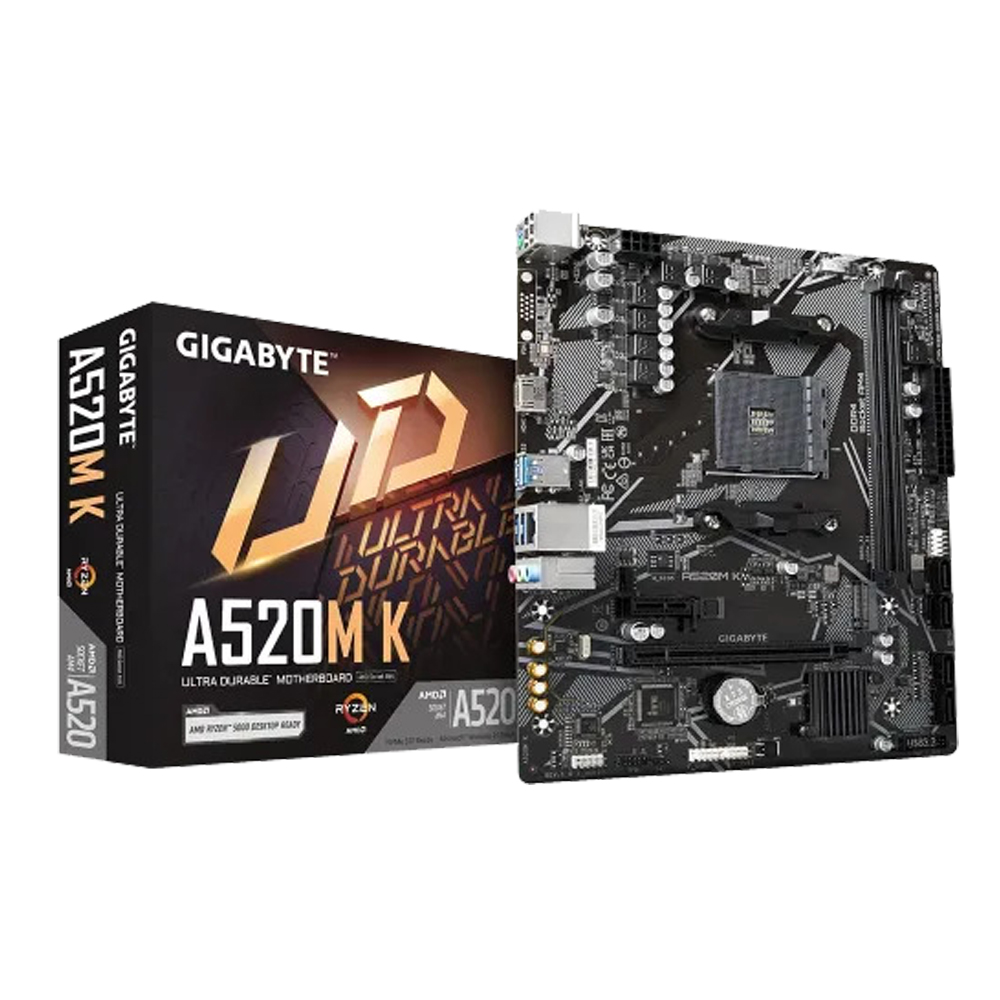

GIGABYTE A520M K AM4 Micro ATX Motherboard

0.00৳

  • AMD A520 Chipset
  • Supported CPU – AMD Ryzen™ 5000 /5000 /4000 /3000 Series Processors
  • Memory Slot – 2
  • Graphics Output: 1 x HDMI port
  • Memory Max. – 64 GB

Hotline: 01977055921 (10:00AM TO 8:00PM)

Out of stock

GIGABYTE A520M K AM4 Micro ATX Motherboard

Supported CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
Chipset AMD A520 Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.3cm x 19.8cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket 1 x M.2 connector
Memory Type DDR4
Slots 2x DDR4 memory slots
Supported Memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64 GB (32 GB single DIMM capacity)
Graphics Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.0 version and HDCP 2.2.
Max Shared Memory 16 GB
HDMI 1 x HDMI
USB (s) CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage CPU:1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset: 4 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, and RAID 10
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 port
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Manufacturing Warranty 3 years warranty

What is the GIGABYTE A520M K AM4 Micro ATX Motherboard Price in Bangladesh ?

The GIGABYTE  A520M K AM4 Micro ATX Motherboard Price in BD is 0 in Today’s 9th November 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.

GIGABYTE A520M K AM4 Micro ATX Motherboard Review in BD

Product Price

0

Stock Status In Stock
Specification Model: GIGABYTE A520M K AM4 Micro ATX Motherboard

Supported CPU: AMD Ryzen™ 5000 /5000 /4000 /3000 Series Processors

Supported Memory: 2 x DIMM, Max. 64GB, DDR4

Graphics support: Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.0 version and HDCP 2.2.
