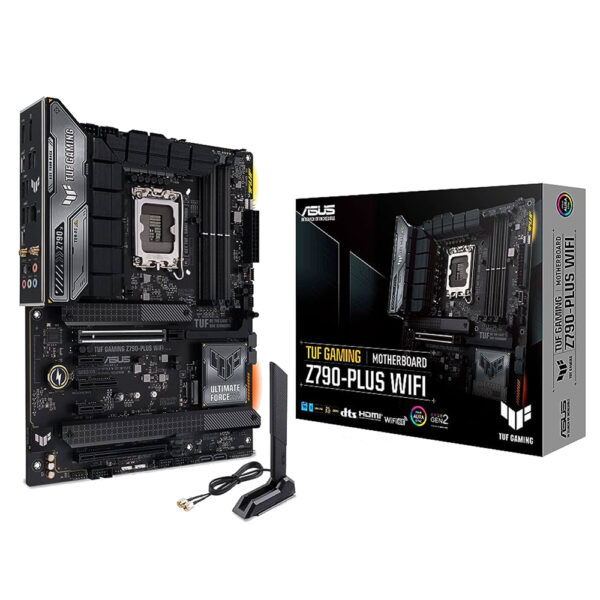

ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard

0.00৳

  • Sockets Supported – LGA1700
  • Supported CPU – LGA1700
  • Generation – 12th/13th
  • Memory Slot – 4
  • Memory Max. – 128GB

Hotline: 01977055921 (10:00AM TO 8:00PM)

ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard

Supported CPU Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold, and Celeron Processors, Supports Intel Turbo boost technology 2.0 and Intel Turbo Boost max technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding
– Rear optical S/PDIF outport
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover

PCI Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
M.2 Socket Total supports 3 x M.2 slots
Memory Type DDR5
Slots 4 x DIMM
Supported Memory 7800(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz Non-ECC, Un-buffered Memory
Maximum Memory Max. 128GB
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in Display Port 1.4)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Manufacturing Warranty 3 years warranty

What is the ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard Price in Bangladesh ?

The ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard Price in BD is 0 in Today’s 5th December 2023 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for Product Reviews.

ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard Review in BD

Product Price 0
Stock Status In Stock
Specification Model: ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard

  • Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR5
  • Graphics Output: 1 x DisplayPort, 1 x HDMIFeatures: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
Total Reviews Based On 0 Reviews.



Brand

Availability

Out of Stock

CPU Socket

LGA 1700

From Factor

ATX

Processor Type

RAM Type

DDR5

Special Feature

Wifi

Reviews

There are no reviews yet.

Be the first to review “ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard”
