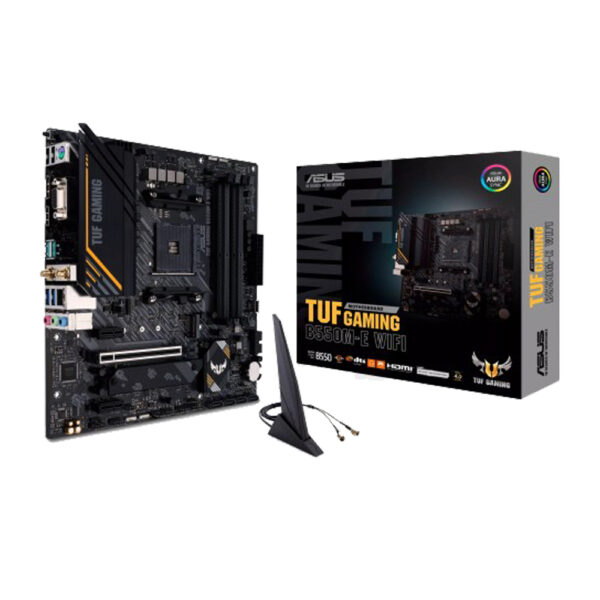

Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard

0.00৳

  • Sockets Supported – AM4
  • Supported CPU – AMD Ryzen 5000 Series
  • Generation – Not Applicable
  • Memory Slot – 4 x DIMM
  • Memory Max. – Max. 128GB

Hotline: 01977055921 (10:00AM TO 8:00PM)

Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard

Model TUF GAMING B550M-E WIFI
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset AMD B550 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 24.4cm
Audio 3 x Audio jack(s)
PCI AMD Ryzen 5000 Series/ 3000 Series Desktop Processors:
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors:
1 x PCIe 3.0 x16 slot (supports x16 mode)AMD B550 Chipset:
2 x PCIe 3.0 x1 slots
Memory Type DDR4
Slots 4 x DIMM
Supported Memory 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Maximum Memory Max. 128GB
Graphics
1 x DisplayPort 1.2
1 x D-Sub1 x HDMI™ 2.1 (4K@60Hz)* Graphics specifications may vary between CPU types.
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort 1.2
D-Sub (s) 1 x D-Sub
USB (s) 2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 connector (supports USB Type C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

LAN Port (s) TUF LANGuard
Wireless & Bluetooth Bluetooth v5.1 function will be ready in Windows® 10 build 19041 or later.
Supported Storage MD Ryzen 5000 Series/ 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Support RAID 0, 1, 10

Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features ASUS TUF PROTECTION

– DIGI+ VRM

– Enhanced DRAM Overcurrent Protection

– ESD Guards

– TUF LANGuard

– Overvoltage Protection

– SafeSlot Core+

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

AURA Sync

– AURA RGB headers

– Addressable Gen 2 RGB headers

Software Features ASUS Exclusive Software

Armoury Crate

– AURA Creator

– AURA Sync

AI Suite 3

– Performance and Power Saving Utility

  TurboV EVO

  EPU

  DIGI+ VRM

  Fan Xpert 2+

– EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

MyASUS

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

Manufacturing Warranty 3 years warranty

What is the Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard Price in Bangladesh ?

The Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard price in BD is 0 in today’s 5th December 2023 market. Paragon Computer BD offers you with special price which is also in stock now at our Showroom. Follow us on Facebook for regular updates & offers. Subscribe to Our YouTube channel for product review.

Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard Review in BD

Product Price 0
Stock Status Out of Stock
Specification Model: Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard

  • Supported CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Supported Memory: 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
    Dual Channel Memory Architecture
  • Features: Realtek RTL8111H 1Gb Ethernet
