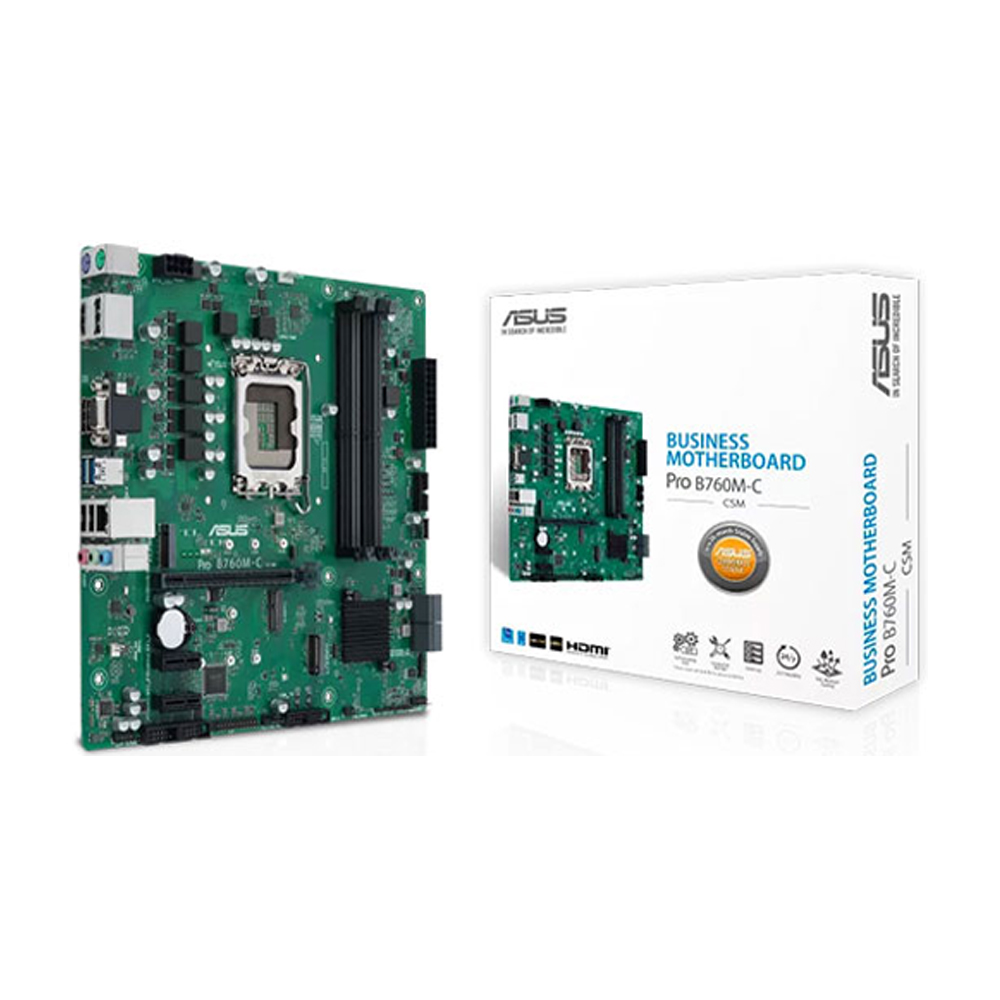

ASUS PRO B760M C CSM INTEL CHIPSET MOTHERBOARD
| Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| BIOS | 128Mb Flash ROM |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots |
| Memory Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 192GB |
| Graphics | 1 x D-Sub port (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) 2 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| HDMI | 1 x HDMI port |
| Display Port (s) | 2 x DisplayPort |
| VGA (s) | 1 x VGA port |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
| Special Features | ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – Box Headers Bespoke Motherboard Design & Business Focused Features – ASUS Self Recovering BIOS – ASUS Event Log – ASUS Commercial BIOS kit* – Anti-Moisture Coating – 24/7 Reliability – Overcurrent Protection |
| Manufacturing Warranty | 3 years warranty |
What is the ASUS PRO B760M C CSM INTEL CHIPSET Motherboard Price in Bangladesh ?
The ASUS PRO B760M C CSM INTEL CHIPSET Motherboard Price in BD is 0 ৳ in Today’s 9th May 2024 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.
ASUS PRO B760M C CSM INTEL CHIPSET MOTHERBOARD Review in BD
| Product Price | 0 |
| Stock Status | Out of Stock |
| Specification | Model: ASUS PRO B760M C CSM INTEL CHIPSET MOTHERBOARD
Supported CPU: Intel Socket LGA1700 for 13th Gen Intel Core Supported Memory: 4 x DIMM, Max. 192GB, DDR5 Supports max. 4K@60Hz as specified in DisplayPort 1.4 |
