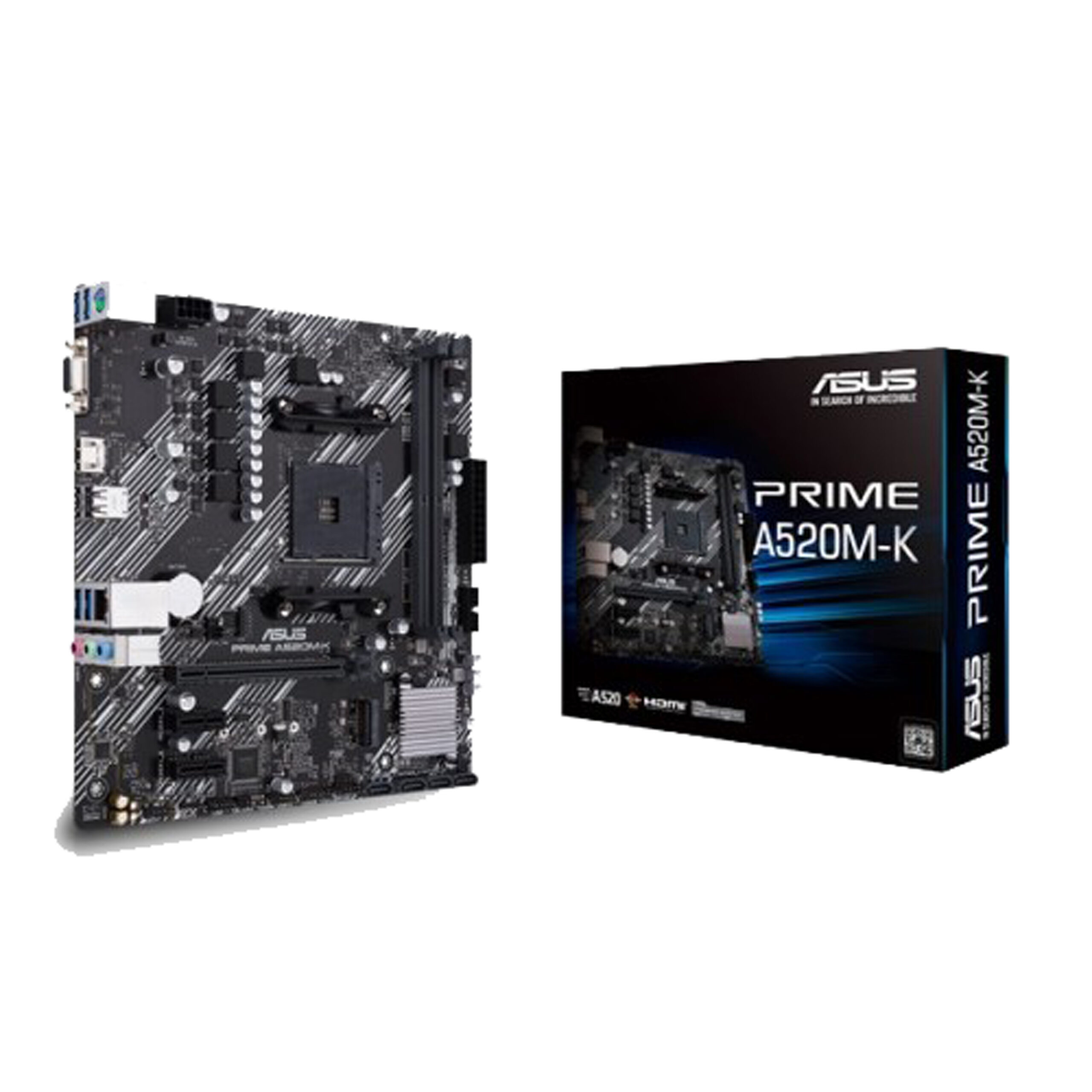

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

0.00৳

  • Sockets Supported – AM4
  • Supported CPU – AMD Ryzen 5000 Series
  • Generation – Not Applicable
  • Memory Slot – 2
  • Memory Max. – 64GB

Hotline: 01977055921 (10:00AM TO 8:00PM)

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

Supported CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
Chipset AMD A520
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
8.9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1
Memory Type Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Supported Memory 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Maximum Memory 64GB, DDR4
Graphics 1  x D-Sub
1  x HDMI 2.1(4K@60HZ)
HDMI 1 x HDMI 2.1 (4K@60Hz)
USB (s) Rear USB Port ( Total 6  )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6  )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s) Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Supported Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
RAID Support Raid 0, 1, 10
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports Internal I/O Ports
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Back Panel I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Manufacturing Warranty 3 years warranty

What is the Asus Prime A520M-K AM4 Micro ATX AMD Motherboard Price in Bangladesh ?

The Asus Prime A520M-K AM4 Micro ATX AMD Motherboard Price in BD is 0 in Today’s 29th November 2023 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.

Asus Prime A520M-K AM4 Micro ATX AMD Motherboard Review in BD

Product Price 0
Stock Status Out of Stock
Specification Model: Asus Prime A520M-K AM4 Micro ATX AMD

Supported CPU: AMD AM4 Socket for Ryzen 5000 Series/ 4000 G Series/ 3000 Series Desktop Processors

Supported Memory: 2 x DIMM, Max. 64GB, DDR4

Graphics Output: 1  x D-Sub 1  x HDMI 2.1(4K@60HZ)
