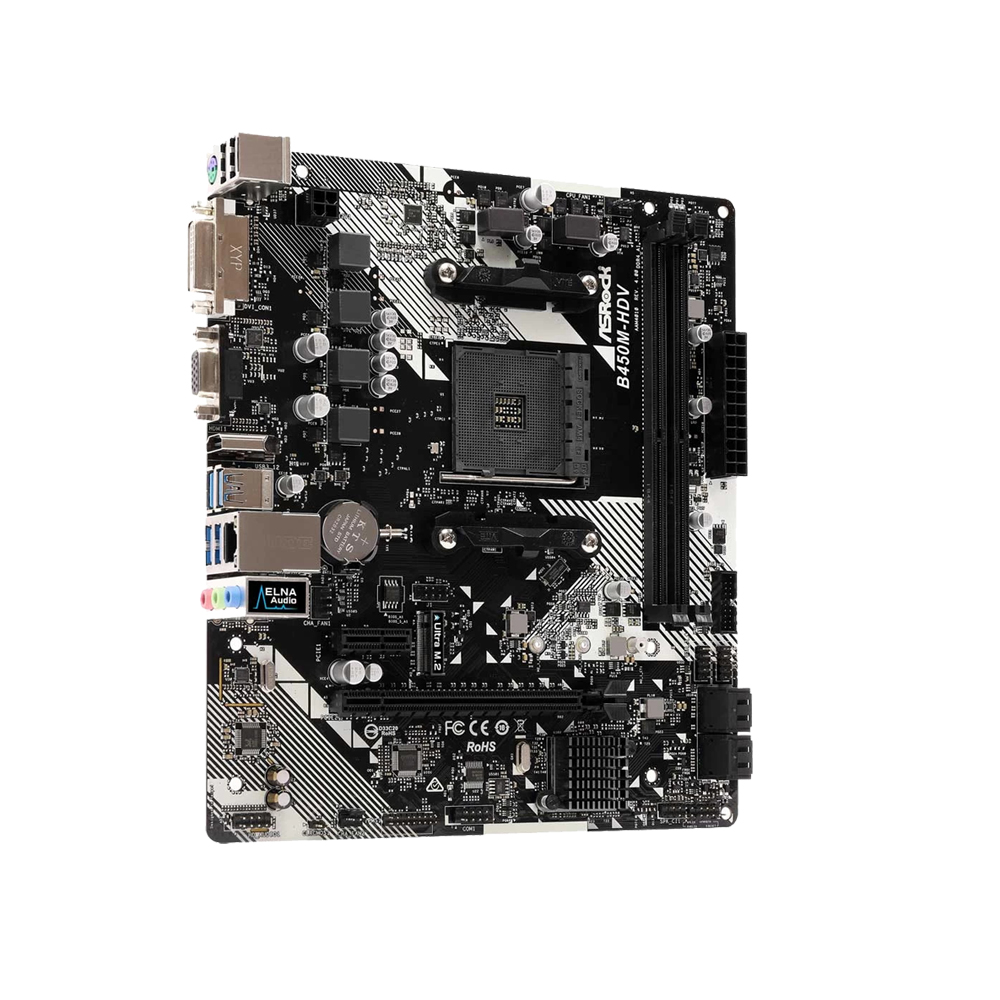

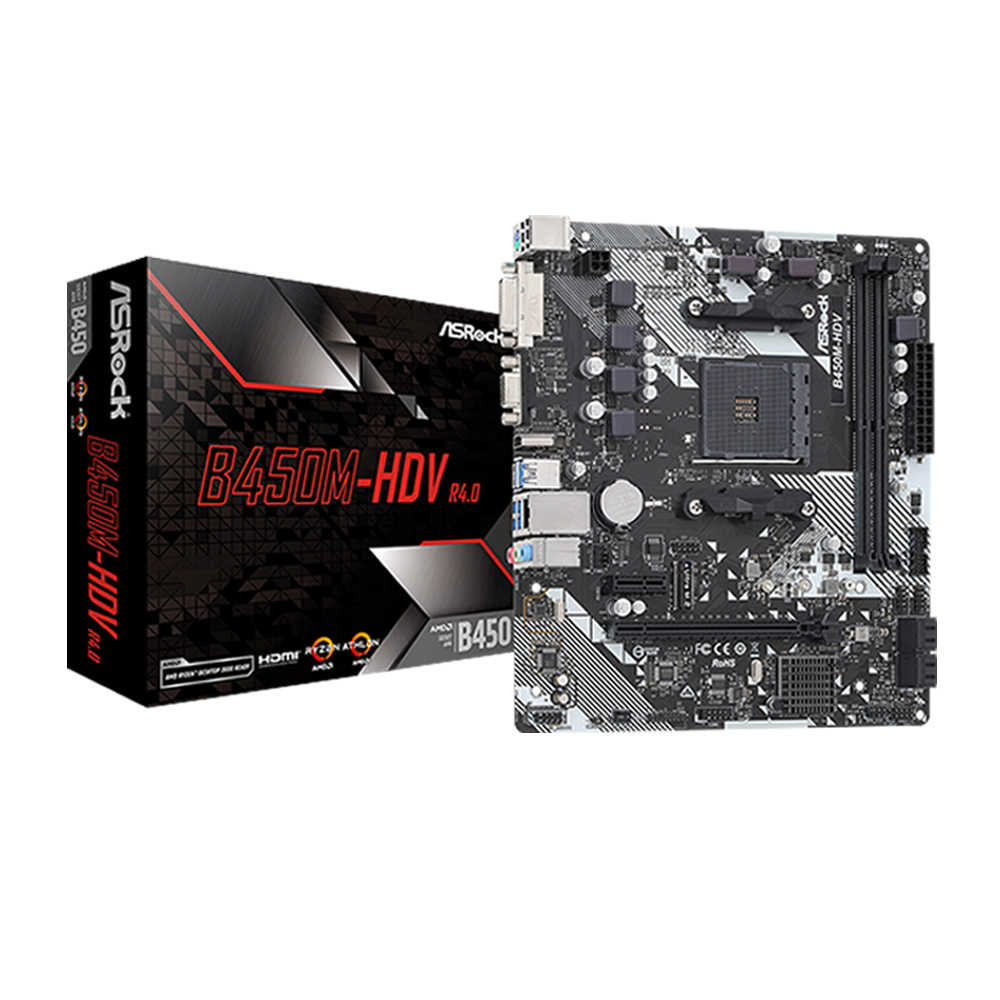

ASRock B450M-HDV R4.0 AMD Motherboard

0.00৳

  • Model: ASRock B450M-HDV R4.0
  • Memory 32 GB
  • AMD Promontory B450
  • Windows 10; 64-bit
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

Hotline: 01977055921 (10:00AM TO 8:00PM)

ASRock B450M-HDV R4.0 AMD Motherboard

Supported CPU – AMD AM4 Socket
– Digi Power design
– Supports CPU up to 105W
Chipset – AMD Promontory B450
BIOS – 128Mb AMI UEFI Legal BIOS with GUI support
– SMBIOS 2.3 support
Form Factor – Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
Audio – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
– Supports Surge Protection
– ELNA Audio Caps
PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
– 1 x PCI Express 2.0 x1 Slot
M.2 Socket – 1 x Screw for M.2 Socket
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)*
Memory Type – Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Supported Memory For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
Graphics – Max Shared memory supports up to 16GB
– The Max shared memory 16GB requires 32GB system memory installed.
HDMI 1 x HDMI
D-Sub (s) – Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– 1 x D-Sub Port
LAN Port (s) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB (s) – 6 USB 3.1 Gen1 (2 Front, 4 Rear)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
Supported Storage – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)

– Supports NVMe SSD as boot disks
– Supports ASRock U.2 Kit

Internal I/O Ports – 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
– 1 x COM Port Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module ) 1 x SPI TPM Header
Manufacturing Warranty 3 years warranty

What is the ASRock B450M-HDV R4.0 AMD Motherboard Price in Bangladesh ?

The ASRock B450M-HDV R4.0 AMD Motherboard Price in BD is 0 in Today’s 29th November 2023 Market. Paragon Computer BD Offers you with special price Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & offers. Subscribe to Our YouTube Channel for product reviews.

ASRock B450M-HDV R4.0 AMD Motherboard Review in BD

Product Price

0

Stock Status In Stock
Specification Model: ASRock B450M-HDV R4.0 AMD Motherboard

Supported CPU: AMD AM4 Socket

Supported Memory: 2x DIMM, DDR4

Graphics support: – Max Shared memory supports up to 16GB
– The Max shared memory 16GB requires 32GB system memory installed.
