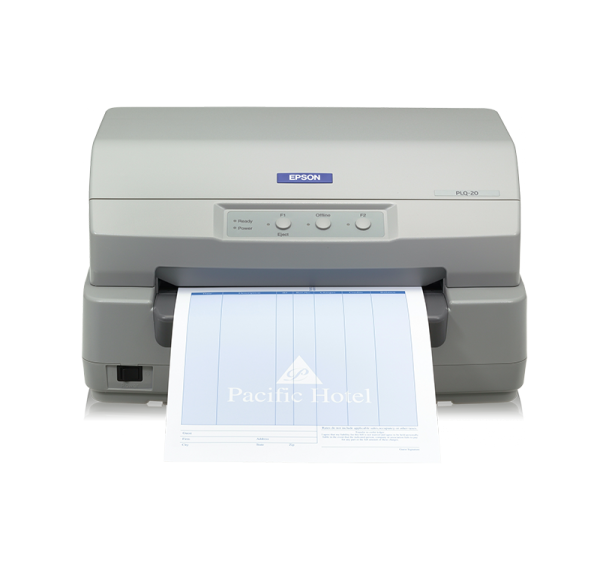

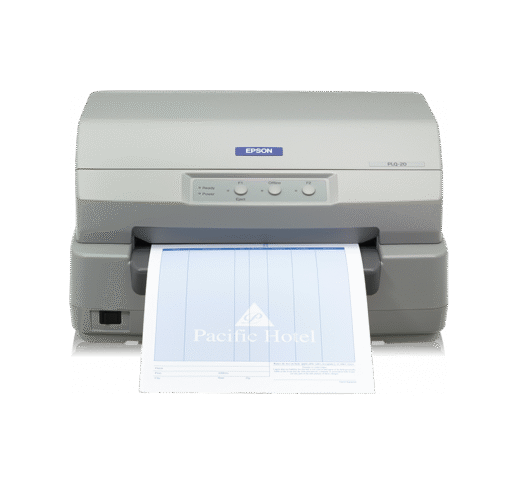

Epson PLQ-20 Dot Matrix Passbook Printer

  • Model: Epson PLQ-20 (C11C560121)
  • Automatic sheet alignment
  • High print speed of up to 10cpi
  • Automatic print head adjustment

Hotline: 01322-893290-3 (10:00AM TO 8:00PM)

Category: Tags: , ,

BRAND

 EPSON

MODEL

 PLQ-20

NUMBER OF PIN

 24 PINS, COLUMNS: 94 CHARACTERS/LINE(10 CPI)

SPEED

 PRINT: RESOLUTION: MAX. 240X360 DPI, SPEED: LQ (ESC/P2): 144 CHARACTERS/SECOND (12 CPI), LQ (ESC/P2): 120 CHARACTERS/SECOND (10 CPI), DRAFT (ESC/P2): 432 CHARACTERS/SECOND (12 CPI),DRAFT (ESC/P2): 360 CHARACTERS/SECOND (10 CPI), HIGHSPEED-DRAFT (ESC/P2): 576 CHARACTERS/SECOND (12 CPI), HIGHSPEED-DRAFT (ESC/P2): 480 CHARACTERS/SECOND (10 CPI)

PRINT HEAD LIFE

 400 MILLION STROKES

CHARACTER SETS

 14 INTERNATIONAL CHARACTER SETS, LEGAL, BARCODES: INDUSTRIAL 2 OF 5, CODE BAR (NW-7), POSTNET, CODE 128, CODE 39, UPC-A, INTERLEAVED 2 OF 5, EAN-8, EAN-13

MEDIA CUT SHEET

 CUT SHEET MULTI PART: MAX. 6 COPIES, THICKNESS: 0,12 – 0,53 MM (DEPENDING ON PAPER QUALITY), WEIGHT: 34 – 50 G/M2 , PRINTABLE AREA: 245 X 297 MM, CUT SHEET SINGLE, THICKNESS: 0,065 – 0,19 MM (DEPENDING ON PAPER QUALITY), WEIGHT: 52 – 157 G/M2 , PRINTABLE AREA: 245 X 297 MM

PASSBOOK MEDIA

 THICKNESS: 2,6 MM (DEPENDING ON PAPER QUALITY), WEIGHT: 95–116 G/M2 , PRINTABLE AREA: 241 X 220 MM

EMULATION

 OLIVETTI PR2E, EPSON ESC/P2, WINCOR 4915, IBM PPDS, IBM 4722 FP

MEMORY

 64KB: PLQ-20, PLQ-20M / 128KB: PLQ-20D, PLQ-20DM

SUPPORTED CONSUMABLES

 RIBBON CARTRIDGE BLACK, CAPACITY: 10 MILLION LINES (DRAFT), PACK OF 3: C13S015339

INTERFACE

 PLQ-20 VERSION WITH 1 USB, 1 PARALLEL AND 1 SERIAL INTERFACE, PLQ-20D VERSION WITH 1 USB AND 2 SERIAL INTERFACES

CONTROL PANEL

 NOISE: < 53 DB(A) WITHOUT MSRW, < 55 DB(A) WITH MSRW, REMOTE UPGRADE MANAGEMENT TOOL, CONFIGURATION UPGRADE TOOL, ADVANCE PRINTER INFORMATION RETRIEVAL TOOL

VOLTAGE

 220-240V

RATED FREQUENCY

 60 W (PRINT), 7.5 W STAND-BY, 0 W POWERED OFF MODE, ENERGY STAR COMPLIANT

DIMENSION

 STANDARD 384X280X203MM (WXDXH)

WEIGHT

 7.7 KGS

WARRANTY

 1 YEAR.
